Warthog WV 1/4

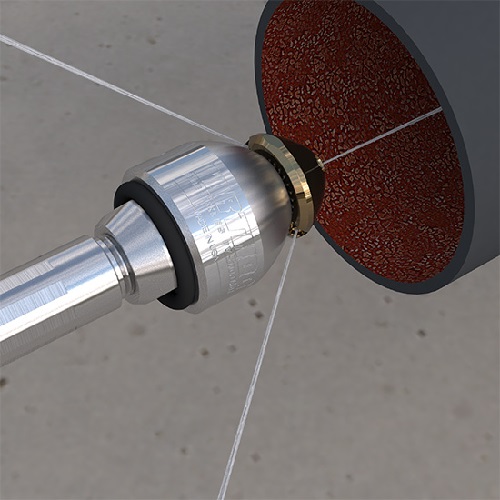

The WV-1/4 uses StoneAge’s flow-through technology and features a revolutionary high-speed rotating design with no high pressure seals or bearings to service. It cleans lines as small as 2” with long sweeping elbows. The head design also features permanent, pre-drilled orifices, rather than threaded nozzles.

Link to manual

Features

  • Capable of negotiating elbows in lines as small as 2″ (51 mm)
  • Patented maintenance-free design
  • Multiple jetting options

Specifications

Tool Family Classic
Tool Model WV-1/4
Pipe Size 2–4 in. 51-102 mm
Pressure Range 2–5k psi 140–350 bar
Flow Range 3-8 gpm 11-30 l/min
Flow Rating 0.8 Cv
Pulling Force 4-9 lb 40 N
Inlet Connection 1/4 NPT or BSPP
Nozzle Ports 3, drilled
Diameter 1.3 in. 33 mm
Length 2.0 in. 51 mm
Weight 0.45 lb 0.20 kg

Head Options

Part # Front Jet Back Jets Flow
WV-1/4-A .024 in.
.6 mm
2 x .052 in.
1.3 mm
7-8 gpm
26-30 l/min
WV-1/4-B .020 in.
.5 mm
2 x .039 in.
1.0 mm
5-6 gpm
15-23 l/min
WV-1/4-C .018 in.
.45 mm
2 x .032 in.
.8 mm
4-4.5 gpm
15-17 l/min
WV-1/4-D .018 in.
.45 mm
2 x .028 in.
.7 mm
3-3.5 gpm
11-13 l/min



Price on requestNZ$ (+GST)
